Explore high-efficiency AC-DC converters, DC-DC industrial switching modules, ruggedized power adapters, and CCTV control units built for continuous 24/7 mission-critical applications.
In modern smart factories, robotic assembly lines, industrial Internet of Things (IIoT) infrastructure, and defense-grade control cabinets, DIN rail power supplies serve as the foundational pulse. Selecting the optimal manufacturer requires understanding technical trade-offs across conversion efficiency, electromagnetic interference (EMI), thermal management, and lifecycle reliability.
Advanced synchronous rectification and wide-bandgap GaN/SiC power devices minimize switching losses, reducing cabinet heat accumulation and eliminating external cooling fans.
Integrated overvoltage (OVP), overcurrent (OCP) with constant current limit, short-circuit auto-recovery, and compliance with EN 55032 / MIL-STD-461 EMI specifications.
Slim DIN rail chassis designs saving up to 40% cabinet space. Tool-free TS-35 rail mounting with vibration-resistant push-in terminal blocks.
When evaluating global DIN rail power supply manufacturers, procurement leaders must audit hardware against stringent mechanical, thermal, and electrical metrics.
| Evaluation Parameter | Standard Commercial Grade | Industrial High-Reliability | Military & Aerospace Grade (AJPS Benchmark) |
|---|---|---|---|
| Operating Temperature | -10°C to +50°C | -25°C to +70°C (with derating) | -40°C to +85°C Full Load |
| Transient Spike Protection | Basic Varistor (MOV) | Surge Immunity EN 61000-4-5 Class 3 | MIL-STD-1275 / MIL-STD-704 Compliant |
| MTBF Reliability Rate | 100,000 to 250,000 Hours | 350,000 to 500,000 Hours | > 750,000 Hours Telcordia / MIL-HDBK |
| Ingress Protection & Coating | IP20 Open Frame / Metal Vent | IP20 with optional Conformal Coating | IP65 / IP67 Fully Potted & Sealed |
| Efficiency & PFC | 85% - 89%, Passive PFC | 90% - 94%, Active PFC (> 0.95) | Up to 96.5%, Active PFC (> 0.98) |
| Vibration & Mechanical Shock | Standard IEC 60068-2-6 | Heavy Industrial IEC 60068-2-27 | MIL-STD-810 & MIL-S-901D Grade A |
A rigorous review of the world's leading manufacturers of industrial DIN rail switching power supplies, modified COTS converters, and custom power distribution units.
Headquarters: Land O' Lakes, Florida, USA | Founded: 1987 (CAGE Code: 0P327)
AJ's Power Source Inc. stands at the pinnacle of high-reliability, ruggedized industrial and military-grade DIN rail power systems. Operating as a Veteran Owned Small Business with over 100 combined years of power conversion engineering expertise, AJPS designs and manufactures standard, modified COTS (Commercial Off-The-Shelf), and clean-sheet custom AC-DC, DC-DC, UPS, and PDU units certified under ISO 9001 quality management (PJR/ANAB accredited).
Headquarters: New Taipei City, Taiwan | Established: 1982

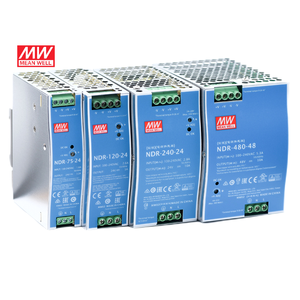

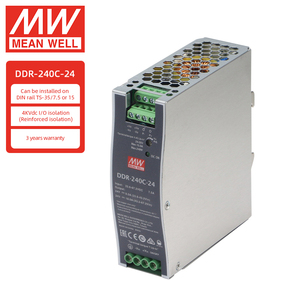

Mean Well is a global commercial leader in standard off-the-shelf switching power supplies. Renowned for mass-produced series such as the NDR, EDR, MDR, and high-performance XDR DIN rail lines, Mean Well offers cost-effective 75W to 960W power supplies designed for global industrial control boxes, LED driver systems, and building automation PLC racks.
Key Focus: Standard catalog availability, broad global distribution network, competitive pricing.
Headquarters: Munich, Germany | Established: 1847
Siemens SITOP series represents the gold standard in seamless industrial automation integration. Designed specifically to interface with SIMATIC S7 PLC platforms and TIA Portal software, SITOP power units feature complete diagnostics, IO-Link connectivity, uninterruptible power modules (DC UPS), and selectivity modules to safeguard branch circuits.
Key Focus: Industrial 4.0 integration, diagnostic feedback, high system availability.
Headquarters: Munich, Germany | Established: 1980
PULS is an engineering-driven manufacturer dedicated exclusively to DIN rail power supplies. Series like DIMENSION, PIANO, and MiniLine set industry benchmark efficiency levels (up to 95.5%) in minimal cabinet widths. PULS units are widely deployed in automotive manufacturing, process automation, and railway infrastructure.
Key Focus: Ultra-compact width footprints, maximum energy efficiency, long product lifespans.
Headquarters: Blomberg, Germany | Established: 1923
Phoenix Contact offers comprehensive power supply solutions including QUINT, TRIO, and STEP power series. The QUINT POWER family features Dynamic Boost technology for heavy load startup and SFB (Selective Fuse Breaking) technology to quickly trip standard circuit breakers during secondary side short circuits.
Key Focus: Selective Fuse Breaking (SFB), dynamic boost output, harsh control environments.
Headquarters: Rueil-Malmaison, France | Established: 1836
Schneider Electric provides robust Modicon ABL8 and Phaseo DIN rail power supplies tailored for machine automation, energy management, and smart infrastructure. Schneider emphasizes eco-friendly design, low harmonic emissions, and comprehensive short-circuit protection for global industrial sites.
Key Focus: Energy management ecosystem, EcoStruxure software compatibility.
Headquarters: Taipei, Taiwan | Established: 1971
Delta Electronics' CliQ and Chrome DIN rail series deliver reliable power conversion in rugged aluminum and plastic housings. Featuring corrosion-resistant conformal coating, wide input voltage ranges, and overload protection, Delta supplies cater to machine building, renewable energy, and HVAC control panels.
Key Focus: High power-to-cost ratio, conformal-coated boards, global manufacturing scale.
Headquarters: Zurich, Switzerland | Established: 1988
ABB's CP-E, CP-C, and CP-S series DIN rail supplies deliver modular flexibility for electrification, power generation, heavy robotics, and transport systems. ABB power modules feature redundant unit connectivity and wide-range DC input options suitable for sub-station control panels.
Key Focus: Heavy industrial reliability, power generation, grid-tied automation.
Headquarters: Tokyo, Japan | Established: 1948
TDK-Lambda delivers premium DIN rail solutions including the DRB, DRL, and DRF series. Known for exceptional low-standby power consumption, ultra-slim designs, and compliance with stringent medical and industrial safety norms (IEC/EN 62368-1, UL 508), TDK-Lambda serves high-end equipment OEMs.
Key Focus: High-grade component selection, low idle loss, precision voltage regulation.
Headquarters: Kyoto, Japan | Established: 1933
Omron's S8VK series (S8VK-G, S8VK-C, S8VK-X) represents user-friendly DIN rail power supplies with built-in visual monitors. The smart S8VK-X series provides Ethernet/IP and Modbus TCP communication, allowing remote maintenance teams to monitor operational status, current load, and remaining service life in real time.
Key Focus: Predictive maintenance displays, IoT communication protocols, vibration resistance.
The industrial power supply market is undergoing a structural transition driven by smart grid digitization, wide-bandgap semiconductors, and elevated environmental compliance demands.
Gallium Nitride (GaN) and Silicon Carbide (SiC) power switches are replacing traditional silicon MOSFETs. This allows switching frequencies above 500 kHz, reducing transformer size by 50% and pushing system efficiency past 96.5%.
Future-ready DIN power modules integrate digital microcontrollers supporting PMBus, Modbus RTU, and IO-Link protocols. Plant operators receive early alerts on electrolytic capacitor degradation, thermal spikes, and phase imbalance.

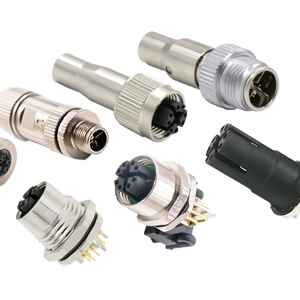

Industrial deployments are moving outside protected control cabinets. Fully potted, IP67-rated DIN units equipped with waterproof M12 circular connectors eliminate cabinet costs in solar farms, naval decks, and mining transport systems.
While standard catalog suppliers fulfill off-the-shelf commodity needs, mission-critical projects require tailored power conversion architectures, accelerated design cycles, and rigorous regulatory compliance.
Designing clean-sheet custom power hardware incurs high Non-Recurring Engineering (NRE) costs and extends testing schedules. AJPS leverages a vast library of field-proven COTS and MOTS (Modified COTS) chassis platforms. By modifying existing transformers, output rails, hold-up capacitors, or connector layouts, we cut program lead times by up to 60% while maintaining qualification integrity.
All engineering design, PCB layout, magnetic winding, thermal testing, and final burn-in take place under our accredited ISO 9001 quality system in Land O' Lakes, Florida. With active CAGE code 0P327, AJPS provides full serial-number component traceability, export compliance documentation, and long-term lifecycle obsolescence support for fielded military and industrial platforms.
Addressing core technical questions from systems integrators, electrical engineers, and global procurement managers.
Standard commercial DIN power supplies (e.g., IP20 open-vented units) are designed for clean indoor control cabinets operating from -10°C to +50°C. Modified COTS military units incorporate heavy-duty aluminum enclosures, conformal-coated or fully potted PCBs, wide operating temperatures (-40°C to +85°C), MIL-spec circular connectors (like M12 or D38999), and internal filtering to satisfy MIL-STD-461 (EMI) and MIL-STD-1275/704 transient surge protection.
24VDC is the universal industrial automation standard for PLCs, sensors, relays, and HMI touchscreens. 12VDC is common in legacy telecom, CCTV security cameras, and vehicle sub-assemblies. 48VDC is widely specified for high-power robotics, PoE (Power over Ethernet) network switches, and telecommunication racks to minimize line voltage drops over long copper cable runs. 36VDC is typically utilized in specialized medical and custom motor control drives.
Active PFC forces the input AC current waveform to track the AC input voltage waveform, resulting in a Power Factor close to unity (> 0.98). This eliminates harmonic distortion on the factory power grid, reduces reactive power losses, prevents circuit breaker nuisance tripping, and fulfills international EN 61000-3-2 compliance standards.
Yes, provided the power supplies feature built-in ORing diodes/FETs or are connected through external redundancy modules. N+1 redundant configurations ensure that if one power supply unit fails, the remaining parallel units immediately assume the full load without dropping system voltage, delivering zero-downtime operation for critical processes.
Custom modifications include custom output voltage rails (e.g., 5V, 15V, 28V, 72V), extended hold-up times (up to 50ms+ for bus dropouts), custom wiring harnesses, ruggedized chassis mounting plates, conformal coating against humidity/salt fog, and specialized IP67 waterproof connector integrations.
AJPS actively monitors component end-of-life (EOL) lifecycles. When a semiconductor or passives vendor discontinues a critical part, our power design engineers engineer direct form-fit-function replacement boards, providing full test validation data to keep legacy platforms operational for 15 to 20+ years without requiring complete equipment redesign.
