Military Power Distribution PDU

Tactical AC-DC & DC-DC Power Distribution Units Engineered for Single & Stacked Field Power Systems

Tactical Power Management

Ruggedized Military Power Distribution Units (PDUs)

AJ's Power Source Inc. designs and manufactures high-performance military AC-DC and DC-DC power distribution units (PowergridM Series) tailored for tactical shelters, transit cases, ground defense vehicles, and naval command centers.

Consolidated Interconnects for Defense Equipments

Our military PDUs provide seamless primary power consolidation, user equipment attachment, and battery expansion module (BXM) interconnects for both standalone and stacked UPS systems. Built to survive harsh field environments, each unit ensures reliable power delivery across tactical operations.

  • Input Versatility: Single-phase & 3-Phase VAC / VDC tactical power buses.
  • Field-Hardened Construction: IP65/IP66 circular connector options and transit case housings.
  • Battery Integration: Supports connection of multiple battery expansion modules (BXM).
  • System Protection: Individual branch circuit protection, thermal breakers, and EMI filtering.
Military AC-DC and DC-DC Rackmount Power Distribution Unit
Product Configurations

Military Power Distribution PDU Product Lineup

Select from standard tactical rackmount units, circular connector junction boxes, or custom power distribution blocks engineered to your exact program specifications.

Military Circular Connector Power Distribution Unit PG-PRIM-STD

Circular Connector Tactical PDU (PG-PRIM-STD)

Utilized for direct circular-connector coupling of user equipment to a single PowergridM UPS system. Available with single-phase or three-phase input options and MIL-spec environmental sealing.

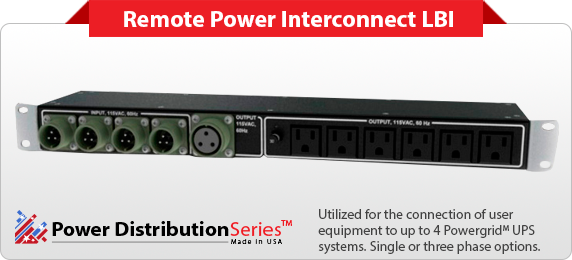

Transit Case Remote Power Interconnect PDU PG-PRIM-LBI

Transit Case Remote Power Interconnect (PG-PRIM-LBI)

Designed for transit-case deployment to interconnect user equipment to up to 4 stacked PowergridM UPS units simultaneously. Features high-capacity terminal contacts and ruggedized strain relief.

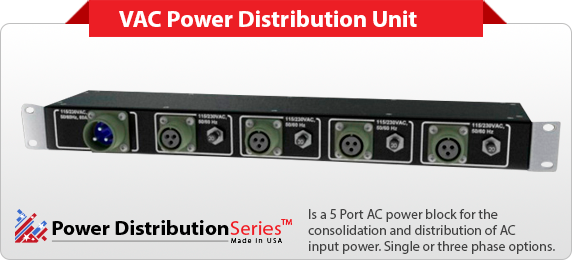

VAC Rackmount AC to DC Tactical Power Distribution Unit

VAC AC-DC Rackmount Power Distribution Unit

A 5-Port AC power distribution block optimized for standardized 19-inch rack enclosures. Provides primary AC bus consolidation, individual circuit breaker monitoring, and low distortion throughput.

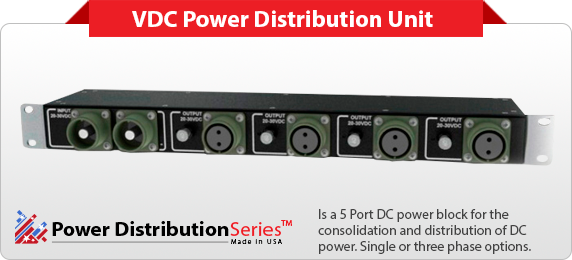

VDC Rackmount DC to DC Tactical Power Distribution Unit

VDC DC-DC Rackmount Power Distribution Unit

High-current DC power block supporting continuous high-output DC bus management. Ideal for military ground vehicle electronics, C4ISR communications racks, and field radar power distribution.

Defense Qualification

Military Standards Testing & Environmental Engineering

AJPS power distribution units are qualified to stringent U.S. military standard test profiles, ensuring uncompromised operation in high-shock, electromagnetic, and harsh climatic environments.

MIL-STD-810G / F

Environmental Engineering Considerations

  • Extreme High / Low Temperature Operation
  • Tactical Humidity & Altitude Survivability
  • Sand, Dust & Salt Fog Protection
  • High-Impact Mechanical Shock & Vibration

MIL-STD-461E / F

Electromagnetic Interference & Compatibility

  • CE101 & CE102 Conducted Emissions
  • CE103 Power Line Transients
  • RE101 & RE102 Radiated Emissions
  • Internal EMI/EMC Filtering Architecture

MIL-STD-1275 / 1399

Vehicle & Shipboard Power Quality

  • MIL-STD-1275 28 VDC Vehicle Spike & Surge Suppression
  • MIL-STD-1399 Section 300 Shipboard AC Interfaces
  • MIL-STD-882D System Safety Requirements
  • MIL-STD-1472F Human Engineering Design
Model / Series Input Voltage Options Output Distribution Ports Enclosure / Mounting Compliance Pedigree
PG-PRIM-STD 120/240 VAC, 1-Phase / 3-Phase Circular Connector Multi-Port Output Rugged Tactical / Wall Mount MIL-STD-810, MIL-STD-461
PG-PRIM-LBI Up to 4x Stacked UPS Input Bus Heavy-Duty Remote Distribution Ports Transit Case / Mobile Rack MIL-STD-810, MIL-STD-1275
VAC Rackmount PDU 85 - 264 VAC Universal Input 5-Port Individual Breaker Distribution 1U / 2U 19" Rackmount Chassis MIL-STD-461, MIL-STD-1399
VDC Rackmount PDU 18 - 36 VDC / High-Voltage DC Bus 5-Port Consolidated DC Output Block 1U / 2U 19" Rackmount Chassis MIL-STD-1275, MIL-STD-810
Frequently Asked Questions

Technical & Procurement FAQ

Our military PDUs are designed, tested, and qualified to MIL-STD-810 (Environmental), MIL-STD-461 (EMI/EMC), MIL-STD-1275 (DC vehicle power transients), MIL-STD-1399 (Shipboard power quality), and MIL-STD-1472 (Human Engineering). Detailed test reports and qualification data are provided for defense contractors and integrators.

Yes. Our tactical VAC PDU blocks support single-phase 120V/230V as well as 3-phase Delta and Wye electrical power configurations depending on tactical shelter, field station, or transit case requirements.

Yes, our PowergridM power distribution systems provide consolidated interconnects for connecting single or stacked UPS units with multiple Battery Expansion Modules (BXM) for extended runtime capability.

AJ's Power Source is a Veteran Owned Small Business (CAGE Code 0P327) with over 35 years of engineering experience supplying defense prime contractors, U.S. armed services, and foreign military sales (FMS) partners worldwide.

Need a customized military power distribution solution or technical catalog?
