AJ's Power Source Inc. (AJPS) designs, engineers, and manufactures industrial grade rack mount power conversion systems engineered to withstand severe environments, electrical transients, and demanding operating conditions. Our VERSA-PWR™ platform delivers continuous high power density up to 10,000 Watts with minimal EMI signatures and multi-rail output flexibility.

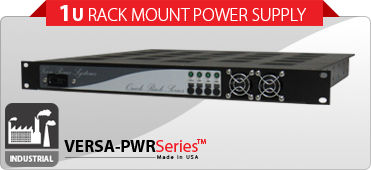

Delivering up to 4,000 Watts in a compact 1U 19-inch rack mount footprint. Supports wide input AC ranges (90–264 VAC) with up to 4 isolated output voltage rails.

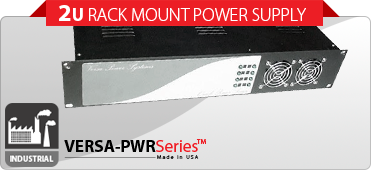

High-density power solutions providing up to 8,000 Watts for industrial plant automation, heavy manufacturing control racks, and telecommunications infrastructure.

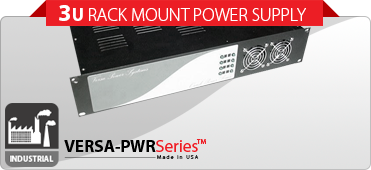

Engineered for extreme continuous workloads up to 10,000 Watts. Optimized for railway power, offshore oil platforms, mining, and sub-station power control.
Every VERSA-PWR™ system is designed to satisfy rigorous global regulatory metrics for safety, electromagnetic compatibility, and operational reliability. Systems are built to endure harsh thermal gradients, dust, vibration, and line power surges.
Strict compliance for power grid compatibility, surge protection, system reliability, and electrical isolation.
Design compliance focused on electrical shock avoidance, fire hazard reduction, and mechanical safety integrity.
Global qualification certifying electromagnetic compatibility (EMC/EMI) and international market quality adherence.
The VERSA-PWR™ Industrial Rack Mount Power Series offers customizable output rails spanning 3.3VDC to 48VDC. Standard configurations allow integration of single, dual, triple, or quad output voltages within standard 19-inch rack cabinets.
| Parameter | Specification & Performance Range | Industrial Operational Benefit |
|---|---|---|
| Input Voltage Range | Universal 90 – 264 VAC (47–63 Hz) / 120–370 VDC | Compatible with standard worldwide industrial power grids and DC buses. |
| Output Voltage Rails | 3.3 VDC, 5 VDC, 12 VDC, 24 VDC, 28 VDC, 48 VDC | Fully configurable multi-rail channels to feed varied automation electronics. |
| Max Output Power | 1U: Up to 4,000W | 2U: Up to 8,000W | 3U: Up to 10,000W | Provides high power density without consuming excess cabinet rack space. |
| Circuit Protection | Over-Voltage (OVP), Over-Current (OCP), Over-Temp (OTP), Short-Circuit | Prevents hardware failure and ensures total system continuous operation. |
| Efficiency Rating | Up to 94% Typical (Active PFC > 0.98) | Reduces operating thermal load and lowers energy consumption. |
| Form Factor / Mounting | 1U, 2U, 3U 19-inch Heavy-Duty Rackmount Chassis | Fits standard EIA-310 industrial cabinets and enclosed transit racks. |
| Operating Temperature | -40°C to +75°C (with intelligent forced-air cooling) | Engineered for continuous duty in non-climate-controlled plant environments. |
Since 1987, AJ's Power Source Inc. has specialized in high-reliability power conversion hardware. As an ISO 9001 registered manufacturer (CAGE 0P327), our US-based engineering team works directly with international procurement groups, system integrators, and defense primes.
Modular architecture enables quick-turn quote turnaround and accelerated production schedules compared to industry standards.
Rigorous quality control management certified by PJR with ANAB accreditation covering all design and assembly processes.
Vibration-resistant internal magnetics, conformal coating options, and rugged chassis designs built for harsh sites.
Full export documentation, compliance verification, and direct engineering consults for overseas buyers.
Need a custom output voltage, modified rack chassis, or specific transient protection package? Contact our power engineering specialists for complete technical data sheets and formal pricing.
