Rugged, Scalable, and Fully Qualified Power Architecture Engineered for Modern Naval Vessels, Submarines, and Electric Ships
With the rapid expansion of radar, combat systems, sonar, and weapon architectures on modern naval combatants, traditional centralized electrical distribution causes severe weight penalties, complex cabling, and single-point vulnerability. AJ's Power Source provides the Next-Generation Shipboard Zonal Electrical Power Management System to solve these operational challenges.
By decentralizing power conversion and backup storage into localized shipboard zones, our system drastically reduces cable bulk while boosting platform survivability, operational readiness, and fault isolation under extreme tactical conditions.
The Shipboard Zonal Electrical Power Management System is built from military-grade modular sub-systems designed for high availability, minimal maintenance downtime, and rapid integration.

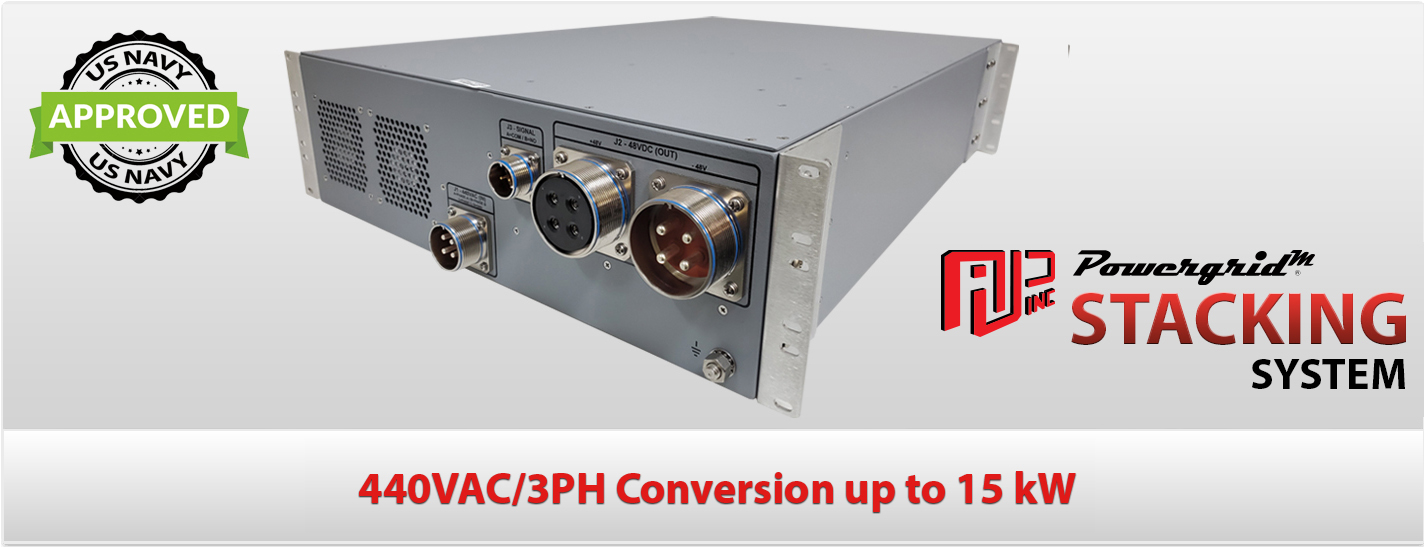

Converts high-voltage 3-phase naval bus power into regulated DC operational rails with active power factor correction and low harmonic distortion.

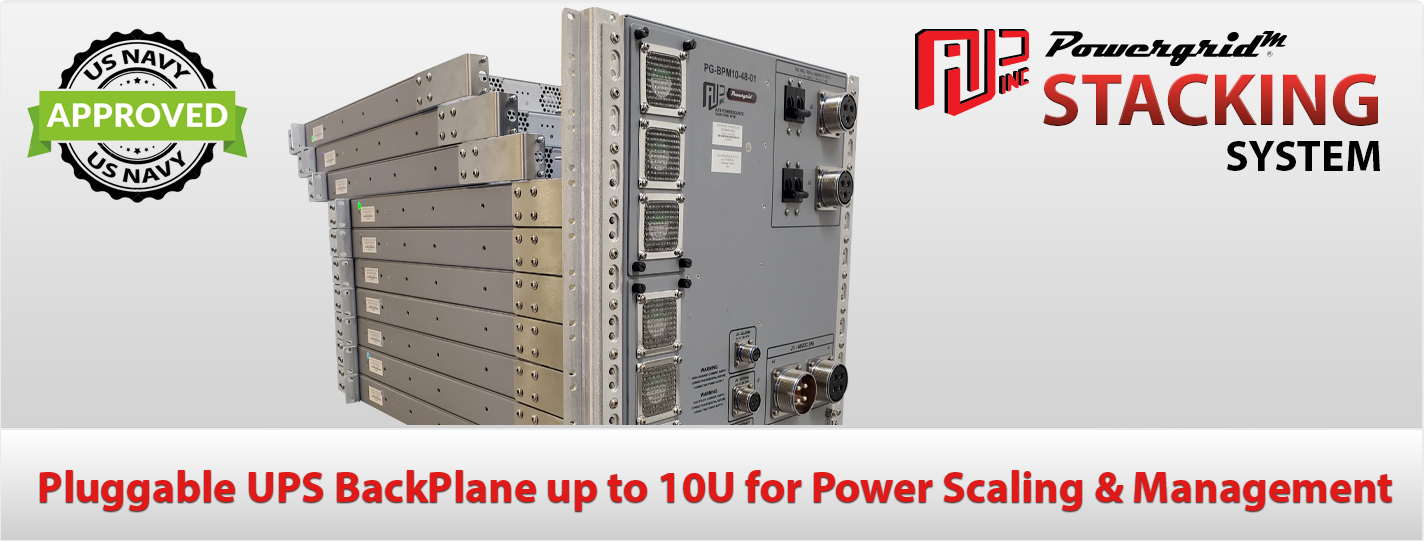

Centralized backplane housing modular power units, providing seamless power routing, hot-swap service capability, and internal bus redundancy.

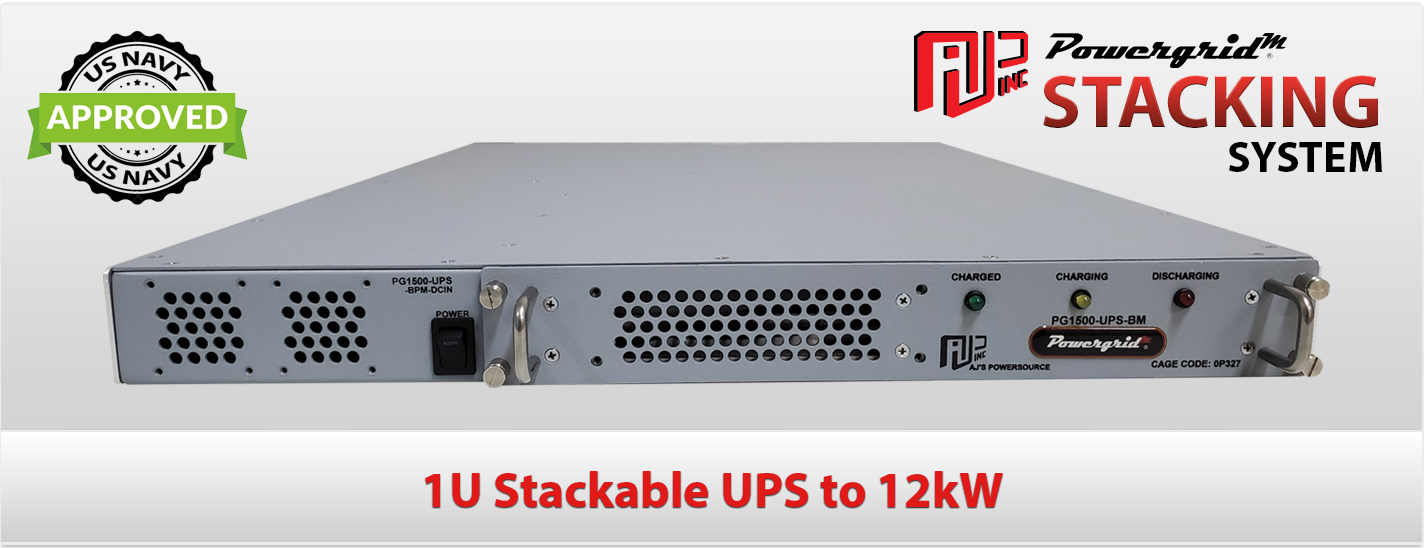

Delivers continuous power ride-through during bus transfer events or primary generator outages, utilizing certified safe LiFePO4 batteries.

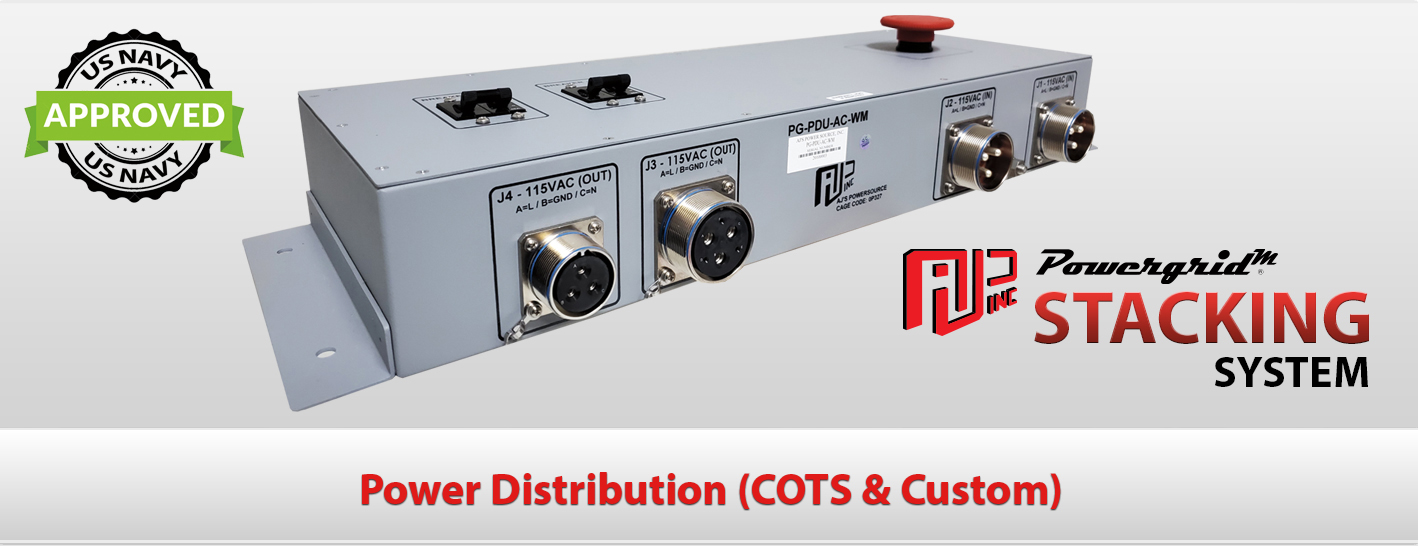

Compact, wall-mounted zone distribution panels designed to supply clean branch power directly to tactical consoles, communications, and sensor suites.
Engineered in Land O' Lakes, Florida under an ISO 9001 certified quality system, our shipboard power equipment undergoes exhaustive environmental, electrical, and structural testing to ensure operational survivability.
| Standard / Certification | Compliance Scope | Engineering Implementation & Benefit |
|---|---|---|
| MIL-STD-1399 (Sec. 300) | Shipboard Electrical Power | Tolerates 60 Hz / 400 Hz line variations, tight voltage regulation, and transient recovery across naval vessel power grids. |
| MIL-S-901D | High-Impact Mechanical Shock | Grade A, Class I shock hardened structures capable of withstanding near-miss underwater explosion shocks without power loss. |
| MIL-STD-167-1A | Shipboard Vibration | Structural vibration mitigation protecting internal transformer cores, PCB assemblies, and harness connections. |
| MIL-STD-461G | Electromagnetic Interference (EMI) | Exceeds strict naval limits including CE101, CE102, CS101, CS114, CS115, CS116, RE101, RE102, RS101, and RS103. |
| MIL-STD-810G | Environmental Engineering | Designed for salt fog, high humidity, extended temperature storage/operation, and deck condensation. |
| NAVSEA S9310 / S9310-AQ-SAF-010 | Lithium Battery Safety | Full technical safety evaluation for high-density lithium energy storage systems deployed aboard naval combatants. |
Since 1987, AJ's Power Source Inc. (CAGE Code: 0P327) has established a reputation for engineering excellence. As a Veteran Owned Small Business, we specialize in high-reliability power systems built specifically for prime contractors, international naval defense integrators, and government shipyards.
Pre-qualified modular chassis reduce program cost, non-recurring engineering (NRE), and risk.
Certified safe chemistry offering max energy density with thermal runaway prevention.
Fast mean time to repair (MTTR) with front-serviceable power modules.
Active component obsolescence management for multi-decade ship service lifecycles.
Consult directly with our naval power application engineers to review your input/output requirements, space constraints, and qualification targets.
Engineering Hotline: +1 (813) 996-2583 | CAGE Code: 0P327
